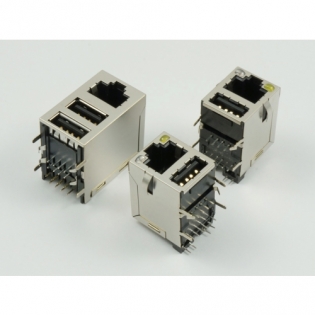

RJ45+USB Combo Connectors

Detail
Meets IEEE 802.3 Specification
10/100/1000 Base-TX Applications
2.5G, 5G and 10G Ethernet RJ45  are available
► Meet or Exceeds FCC Rules and Regulations, Part 68
Customize Magnetic Circuits Integrated in RJ45
RJ45/USB Stacked Design to Save PCB Real State Space
USB Module Complies with USB 2.0 & USB 3.0 Standards
One or Two Type A USB Connectors Integrated with an RJ45
► UL 94V-0 Flammability Thermoplastic
► Available in Customize LED Color Options
► Optional EMI Tabs
Minimum 1500Vrms Isolation
Current Rating: 1.5A, Voltage Rating: 150VAC
Temperature: -40 to 85°C
Durability: Mate and Unmate for 750 Cycles
EU RoHS 2 (Directive 2011/65/EU & 2015/863/EU) Compliance
EU REACH Regulation (EC) No 1907/2006
