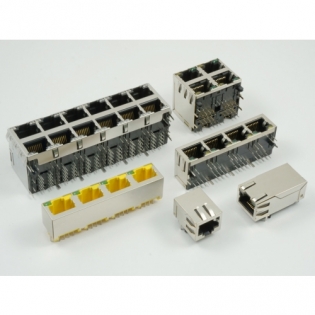

RJ45 Connectors with Magnetic

Meets IEEE 802.3 Specification
10/100/1000 BASE-T
2.5G, 5G and 10G Ethernet RJ45  are available
► Meet or Exceeds FCC Rules and Regulations, Part 68
Meet IEC 60603-7 Reliability Test
Customize Magnetics Circuits are Available
► UL 94V-0 Flammability Thermoplastic
► Single Port, Multi-port and Stacked Configurations
► Right Angle or Vertical Mount in Thru-hole / SMT PCB
► With or Without LEDs, With Shielding and Grounding Options
Minimum 1500Vrms Isolation
Current Rating: 1.5A, Voltage Rating: 150VAC
Temperature: -40 to 85°C
Durability: Mate and Unmate for 750 Cycles
EU RoHS 2 (Directive 2011/65/EU & 2015/863/EU) Compliance
EU REACH Regulation (EC) No 1907/2006
