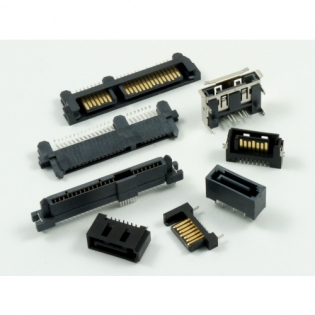

SAS, SATA & eSATA connectors

SATA, Slimline SATA, Micro SATA and eSATA Connectors
Provides 7 Contacts for Signal and 15 Contacts for Power
SAS and Mini-SAS Connectors
Available in Combination of eSATA and USB Connectors
Available in Both Vertical and Right-angle Mount
Available in Through Hole and SMT Contacts
Compliant to Serial ATA Revision 3.0 Specification
Transfer Rate up to 6 gigabit/sec
Staggered contact length
Option for Latch and Non–Latch Design

► UL 94V-0 Flammability Thermoplastic

► Selective Gold Plated on Contact Area
► EU RoHS 2 (Directive 2011/65/EU & 2015/863/EU) Compliance
► EU REACH Regulation (EC) No 1907/2006
